OT (Operation Theater) Tables And Solutions

HomeProductsOT (Operation Theater) Tables And Solutions


We are Manufacturer, Supplier, Exporter of Matrix Advance OT Table, Fully Electric OT Table (Premium), Fully Electric OT Table (Deluxe), C Arm Compatible Semi Electric OT Table, C Arm Compatible Hydraulic OT Table, General Surgery Semi Electric OT Table, General Surgery Hydraulic OT Table, Attachment (Ortho and Neuro) from Ichalkaranji, Kolhapur, Maharashtra, India.

OT (Operation Theater) Tables And Solutions

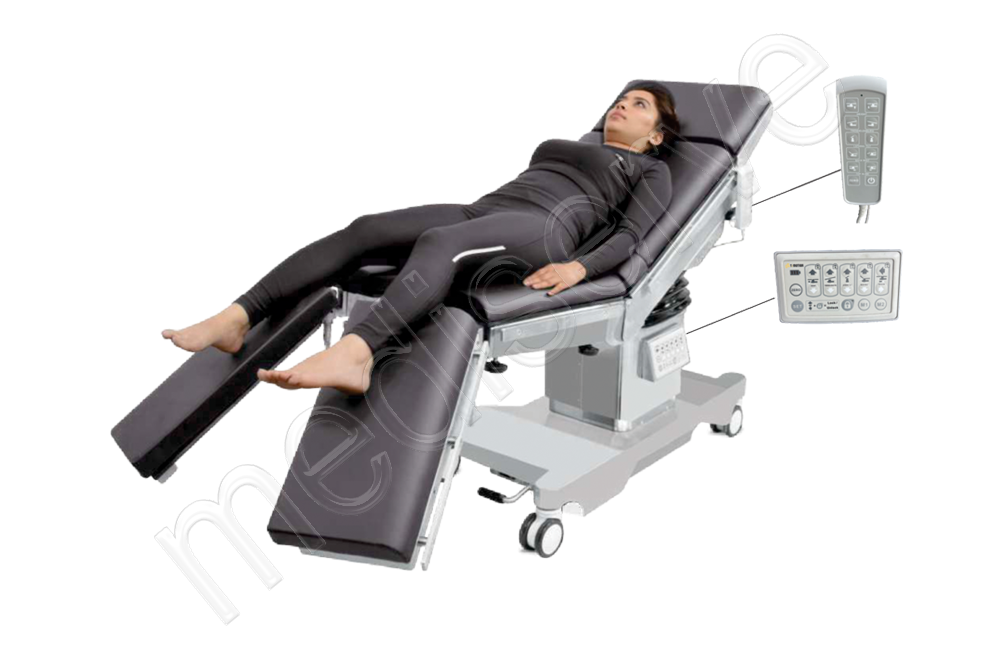

MS 585 - Matrix Advance OT Table

Features :

  • Zero position facility i.e by pressing the single button OT Table will come to normal position.
  • Patient reverse orientation mode when head and leg section are interchanged.
  • Stainless steel Covered Base and Column Covers for easy cleaning and hygiene
  • 2 memory function in control panel.
  • Indication of battery back in the second handset.
  • Anti Bacterial and Anti Fungal Mattress.
  • The Handset is designed with Back LED Indicator for better visibility. Head and foot section is manually operated by the means of Ratchet System

Salient Feature :

  • Sliding Top
  • Split Leg Section
  • Center Pillar
  • Stainless Fitting - Detachable, head, leg & Pelvic section
  • In built kidney bridge
  • Five Sectional Radio - Translucent Top.
  • Base & Cover made of attractive, easy to clean Stainless Steel.
  • Sophisticated mechanics provide smooth, step less articulation of the table Top for precise patient positioning.
  • Standby Battery Back-up with recharging circuit.

Technical Specification :

Length of Table2000 mm
Width of Table Top540 mm
Trendelenburg25°
Reverse Trendelenburg25°
Lateral Tilt20°
Back Section+80 °
Head Section+60 °
Leg Section0° - 90°
Floor Locking SystemCenter Floor Locking
Top Sliding5" Reverse & 5" Forward
Minimum Height750 mm
Maximum Height1000 mm

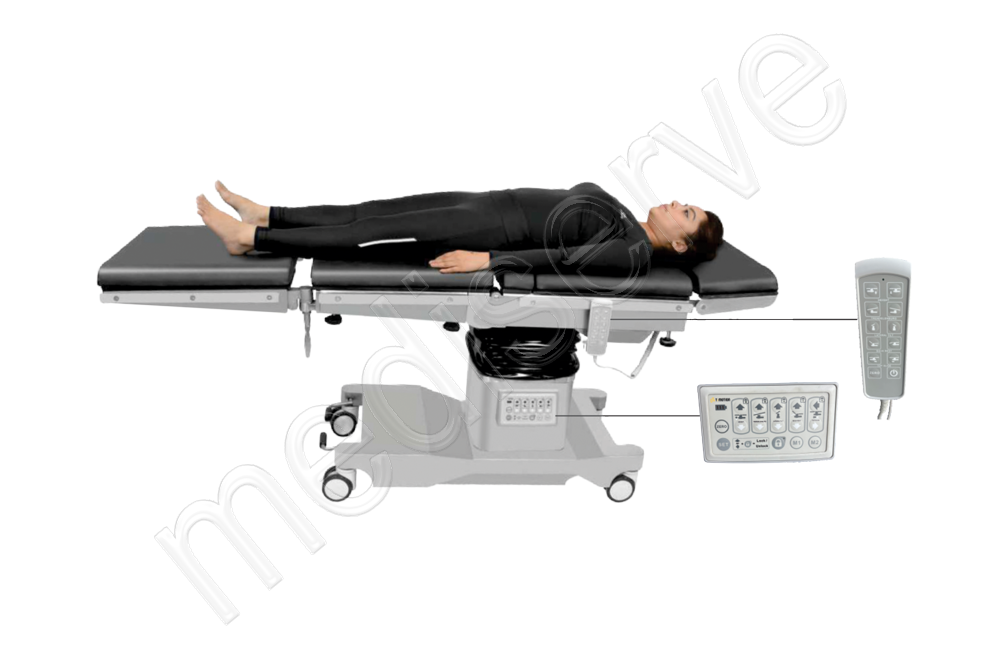

MS 586 - Matrix Advance OT Table

Features :

  • SMPS based control box which can handle better Voltage Fluctuations, When SMPS is idle there is zero current consumption and saves power. These are as per new European and American standards where the idle power consumption should be zero and where transformer based system are outdated.
  • Zero position facility i.e by pressing the single button OT Table will come to normal position.
  • The motion of table is easy with double swivel castors 100mm diameter, in which 2 castors having brakes.
  • tainless steel Covered Base and Column Covers for easy cleaning and hygiene. 2 memory function in control panel.
  • The Handset is designed with Back LED Indicator for better visibility.
  • Anti Bacterial and Anti Fungal Mattress.
  • Stainless Fitting - Detachable, head, leg section
  • In built kidney bridge
  • Five Sectional Radio - Translucent Top.
  • Base & Cover made of attractive, easy to clean Stainless Steel.
  • Sophisticated mechanics provide smooth, step less articulation of the table Top for precise patient positioning.
  • Standby Battery Back-up with recharging circuit.

Technical Specification :

Length of Table2000 mm
Width of Table Top540 mm
Trendelenburg25°
Reverse Trendelenburg25°
Lateral Tilt20°
Back Section+70 °
Head Section+60 °
Leg Section0° - 90°
Floor Locking SystemCenter Floor Locking
Minimum Height (Without Mattress)Min. 750 mm
Maximum Height (Without Mattress)Max. 1000 mm

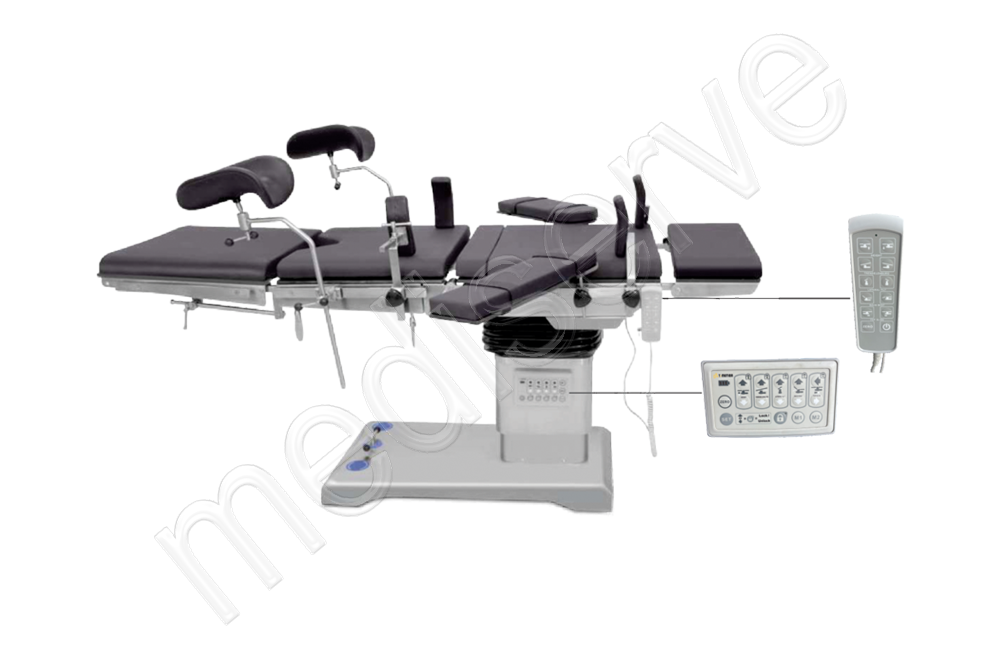

MS 587 - Fully Electric OT Table (Premium)

Features :

  • SMPS based control Box
  • Can handle better Voltage Fluctuations.
  • When idle has zero current consumption and saves power, these are as per new European and American Standards where the idle power consumption should be zero and where Transformer based systems are outdated
  • Handset and Additional control panel Indication of Battery Back provided in the second handset.
  • The Control panel has 2 memory functions.
  • The second handset has also safety key to lock the complete handset The Handset is designed with Back LED Indicator for better visibility.
  • This is the only handset with Backlight features

Salient Feature :

  • Encentric Pillars
  • Stainless Fitting
  • Detachable, head, leg & Pelvic section
  • In built kidney bridge
  • Five Sectional Radio - Translucent Top.
  • Base & Cover made of attractive, easy to clean Stainless Steel.
  • Sophisticated mechanics provide smooth, step less articulation of the table
  • Top for precise patient positioning.
  • Standby Battery Back-up with recharging circuit.

Technical Specification :

Length of Table2000 mm
Width of Table Top520 mm
Trendelenburg25°
Reverse Trendelenburg25°
Lateral Tilt20°
Back Section±70 °
Head Section±60 °
Leg Section0° - 90°
Floor Locking SystemManual
Minimum Height (Without Mattress)Min. 750 mm
Maximum Height (Without Mattress)Max. 1000 mm

Table Position :

  • Height Adjustment - Up & Down
  • Lateral Tilt - Left & Right
  • Trendelenburg & Reverse Trendelenburg
  • Flex Position & Reflex Position

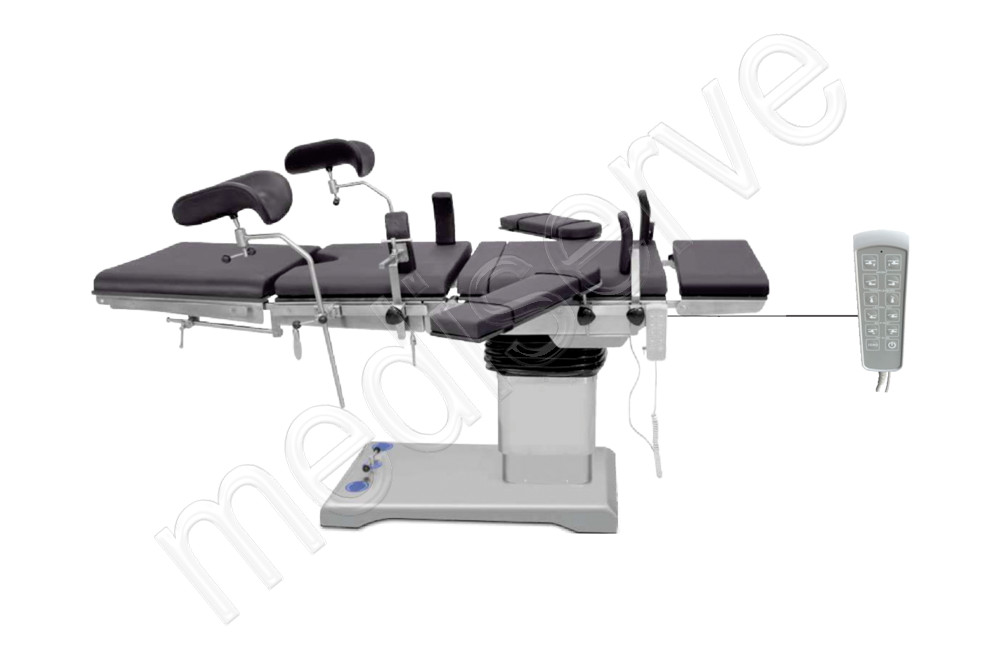

MS 588 :- Fully Electric OT Table (Deluxe)

Features :

  • Encentric Pillars
  • Stainless Fitting
  • Detachable, head, leg & Pelvic section
  • In built kidney bridge
  • Five Sectional Radio - Translucent Top.
  • Base & Cover made of attractive, easy to clean Stainless Steel.
  • Sophisticated mechanics provide smooth, step less articulation of the table top for precise patient positioning.
  • Standby Battery Back-up with recharging circuit.

Technical Specification :

Length of Table2000 mm
Width of Table Top520 mm
Trendelenburg25°
Reverse Trendelenburg25°
Lateral Tilt20°
Back Section±70 °
Head Section±60 °
Leg Section0° - 90°
Floor Locking SystemManual
Minimum Height (Without Mattress)Min. 750 mm
Maximum Height (Without Mattress)Max. 1000 mm

Table Position :

  • Height Adjustment - Up & Down
  • Lateral Tilt - Left & Right
  • Trendelenburg & Reverse Trendelenburg
  • Flex Position & Reflex Position

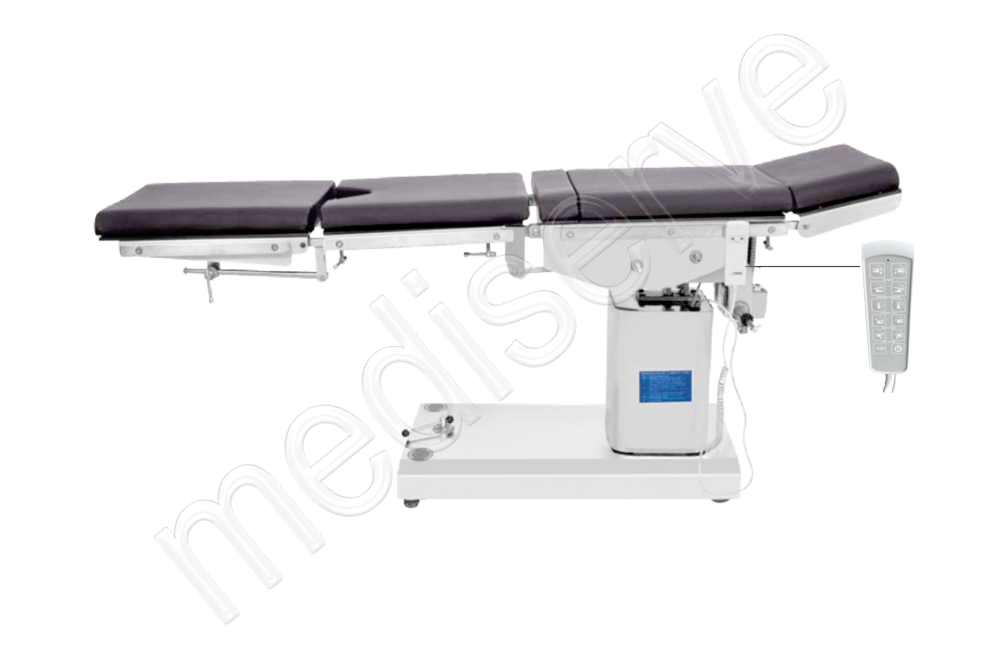

MS 589 :- C Arm Compatible Semi Electric OT Table

Technical Specification :

Length of Table2000 mm
Width of Table Top520 mm
Trendelenburg25°
Reverse Trendelenburg25°
Lateral Tilt20°
Back Section±70 °
Head Section±60 °
Leg Section0° - 90°
Floor Locking SystemManual
Minimum Height (Without Mattress)Min. 750 mm
Maximum Height (Without Mattress)Max. 1000 mm

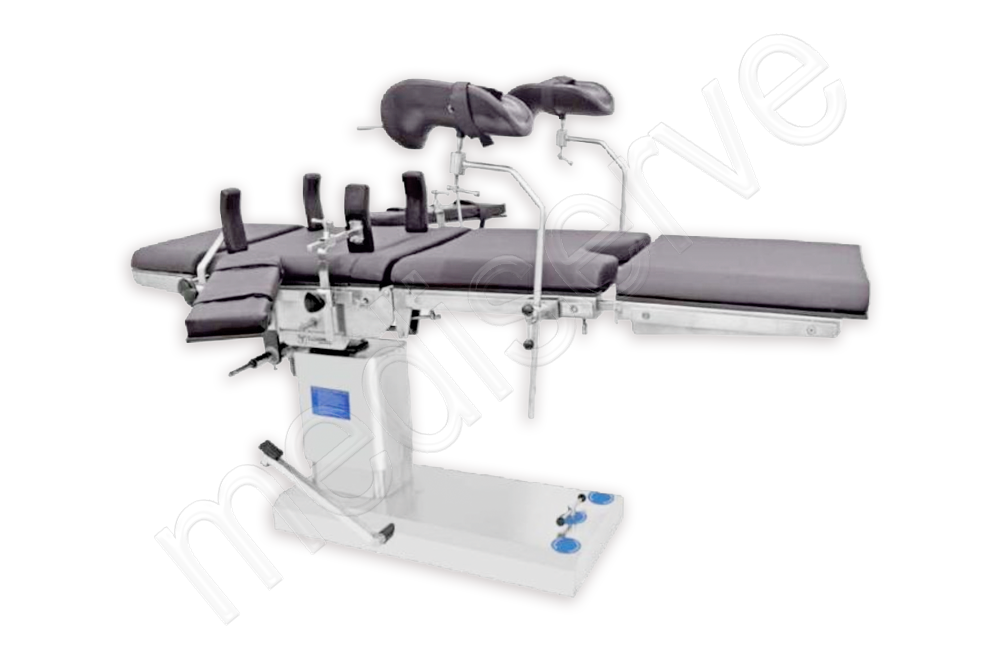

MS 590 :- C Arm Compatible Hydraulic OT Table

Features :

  • Encentric Pillars
  • Stainless Fitting
  • Detachable, head, leg & Pelvic section
  • In built kidney bridge
  • Five Sectional Radio - Translucent Top.
  • Base & Cover made of attractive, easy to clean Stainless Steel.
  • Sophisticated mechanics provide smooth, step less articulation of the table top for precise patient positioning.

Technical Specification :

Length of Table2000 mm
Width of Table Top520 mm
Trendelenburg25°
Reverse Trendelenburg25°
Lateral Tilt20°
Back Section±70 °
Head Section±60 °
Leg Section0° - 90°
Floor Locking SystemManual
Minimum Height (Without Mattress)Min. 750 mm
Maximum Height (Without Mattress)Max. 1000 mm

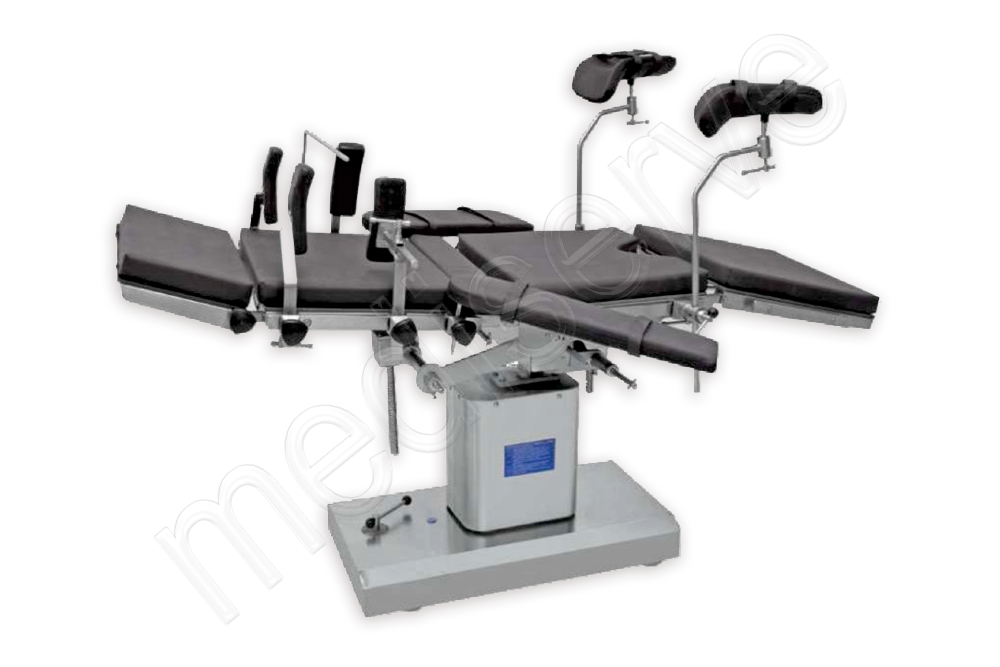

MS 591 :- General Surgery Semi Electric OT Table

Features :

  • Encentric Pillars
  • Stainless Fitting
  • Detachable, head, leg & Pelvic section
  • In built kidney bridge
  • Five Sectional Radio - Translucent Top.
  • Base & Cover made of attractive, easy to clean Stainless Steel.
  • Sophisticated mechanics provide smooth, step less articulation of the table top for precise patient positioning.

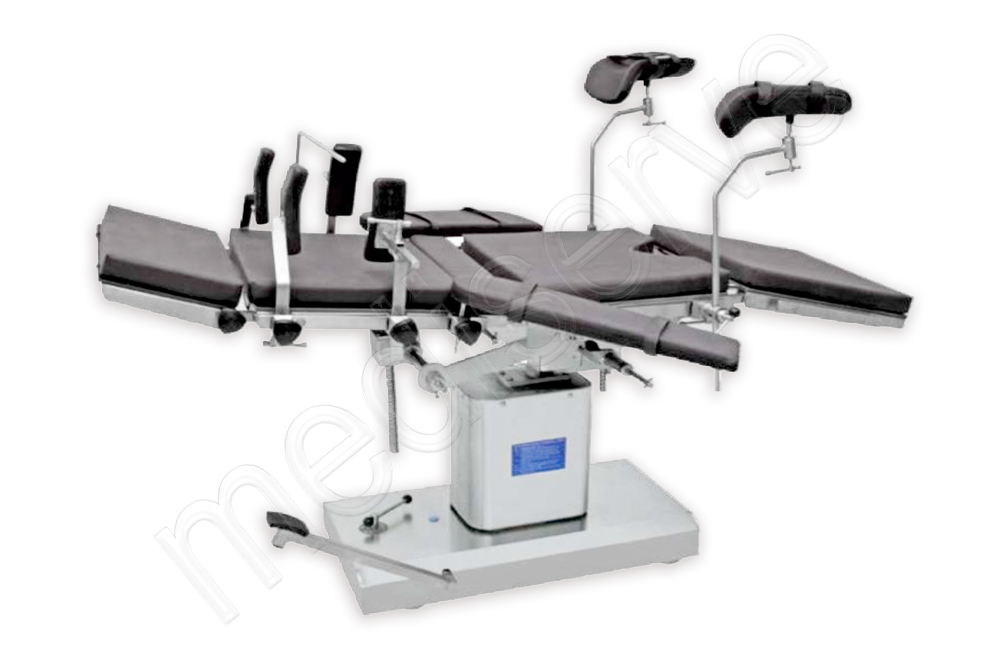

MS 592 :- General Surgery Hydraulic OT Table

Technical Specification :

Length of Table2000 mm
Width of Table Top520 mm
Trendelenburg25°
Reverse Trendelenburg25°
Lateral Tilt20°
Back Section±70 °
Head Section±60 °
Leg Section0° - 90°
Floor Locking SystemManual
Minimum Height (Without Mattress)Min. 750 mm
Maximum Height (Without Mattress)Max. 1000 mm

Attachment (Ortho and Neuro)

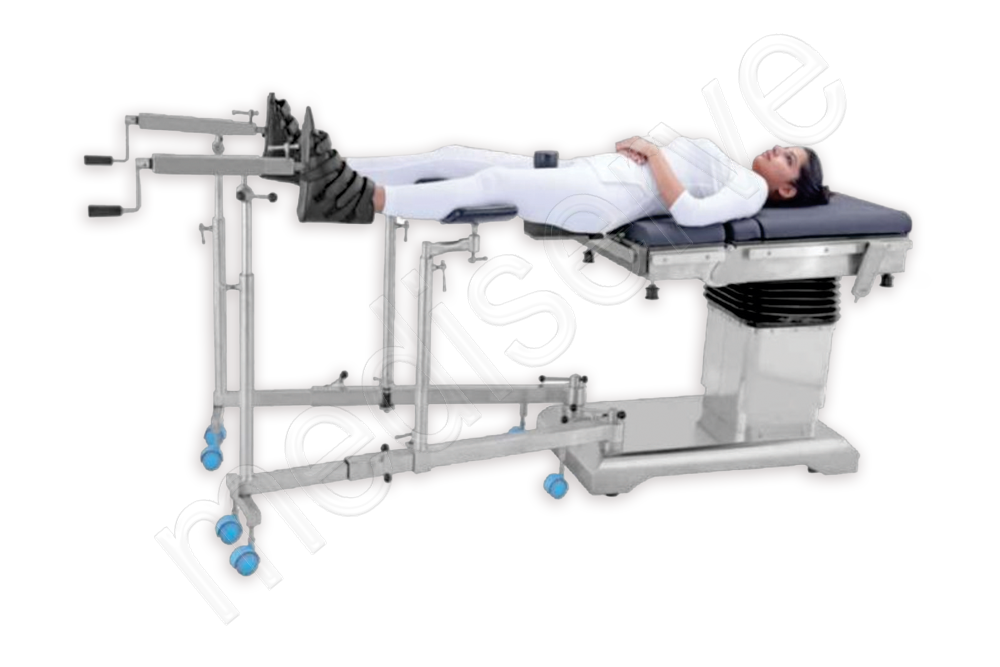

MS 593 - Albee's Type Ortho Attachment

MS 593 - Albee's Type Ortho Attachment

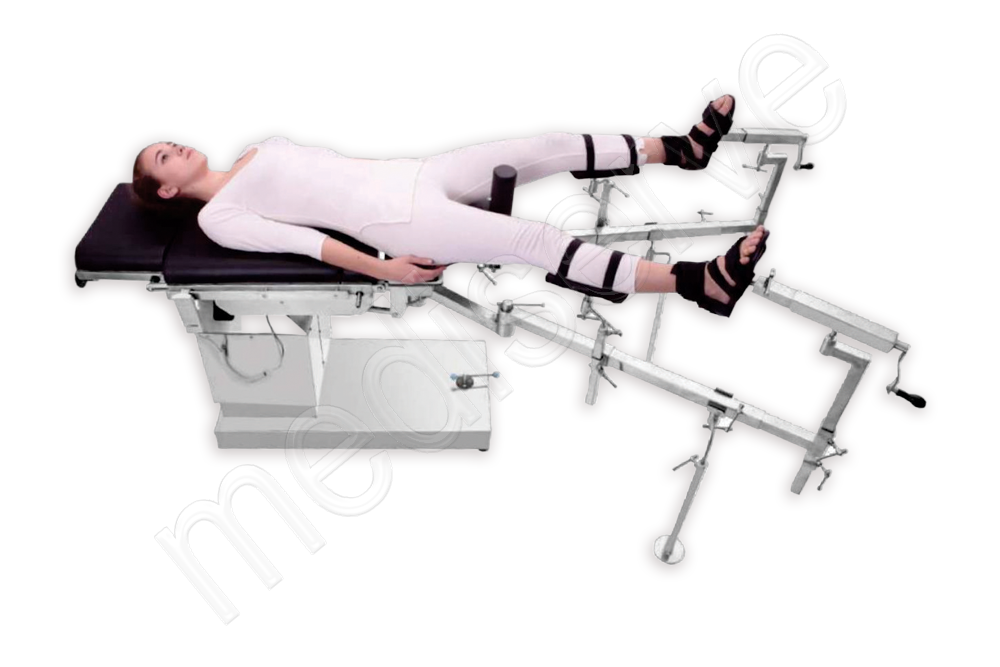

MS 594 - Hanging Type Ortho Attachment

MS 594 - Hanging Type Ortho Attachment

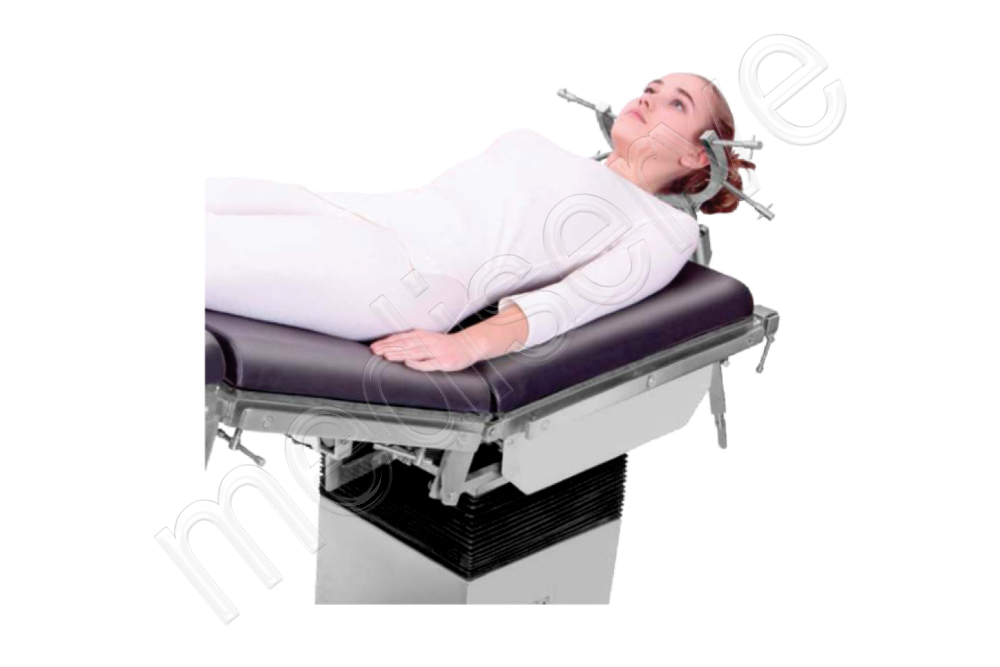

MS 595 - Neuro Attachment Sujita

MS 595 - Neuro Attachment Sujita

MS 596 - Neuro Attachment Mayfield

MS 596 - Neuro Attachment Mayfield
